Leveling systems

The most beautiful technology is the one you can’t see.

Thanks to the function of 90 GRAD GmbH, the tilting and leaning of systems with feet is prevented. The time-consuming and laborious adjustment or placement of feet is a thing of the past with the leveling system from 90 GRAD!

Product Functionality

On uneven surfaces such as cobble stone, patio flooring or carpets the system takes care of the leveling effortlessly and ensures wobble-free and perfectly even standing.

But that’s not all – even on level surfaces the system adds value. By simply lifting and slanting outdoor-tables water does not collect on tabletops; reducing time spend on covering and drying. At the same time, it maintains the visual appearance and life span of any furniture.

Along with its unique functionalities the 90 GRAD leveling system adds a great additional design feature making it a must have for any application.

Assembly types

Assembly
A

Assembly
B

Assembly
C

Assembly
D

Product Specifications

Article number	Suitable tubes (in mm)	Column

Round

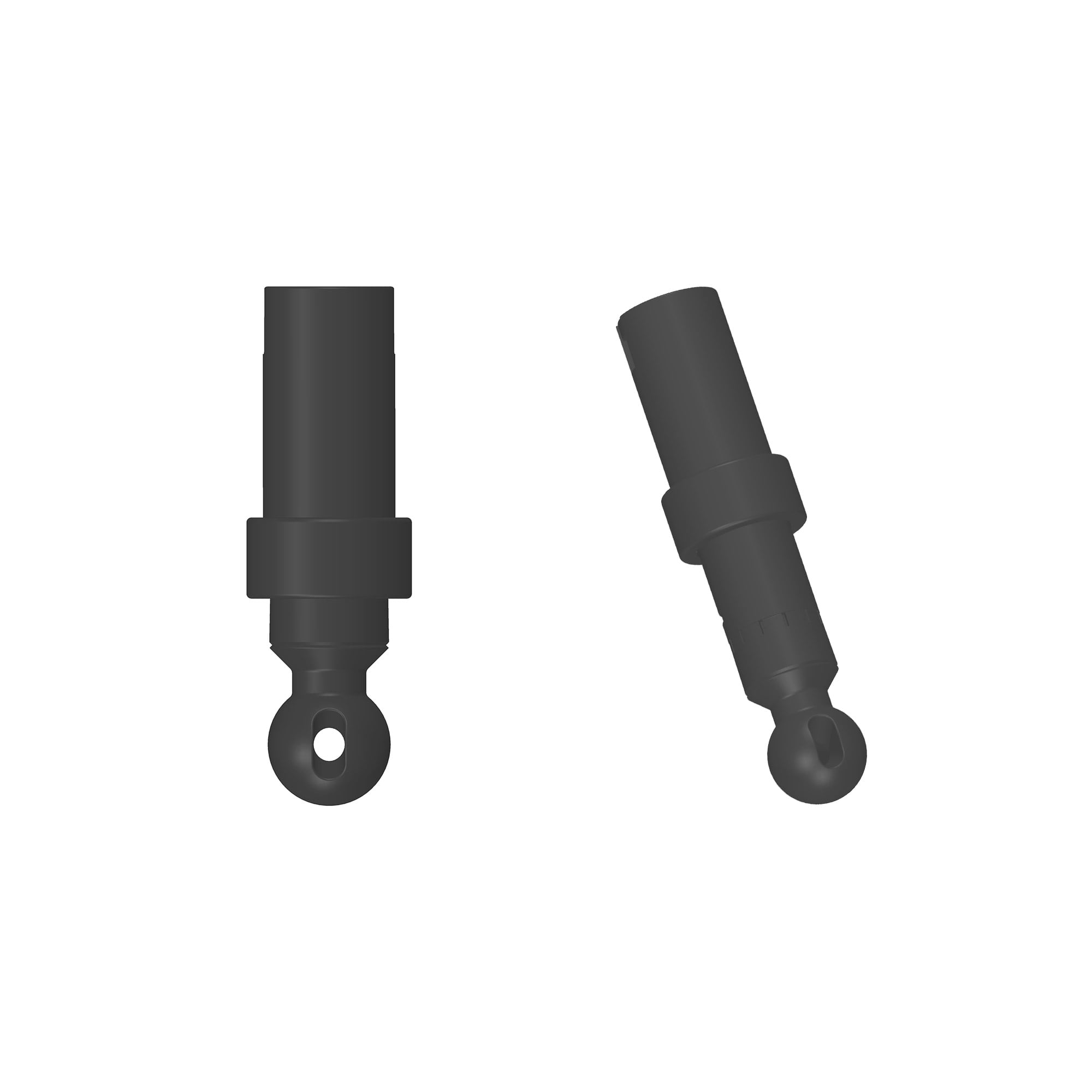

110401 →	Ø 23,5 x (1)	A

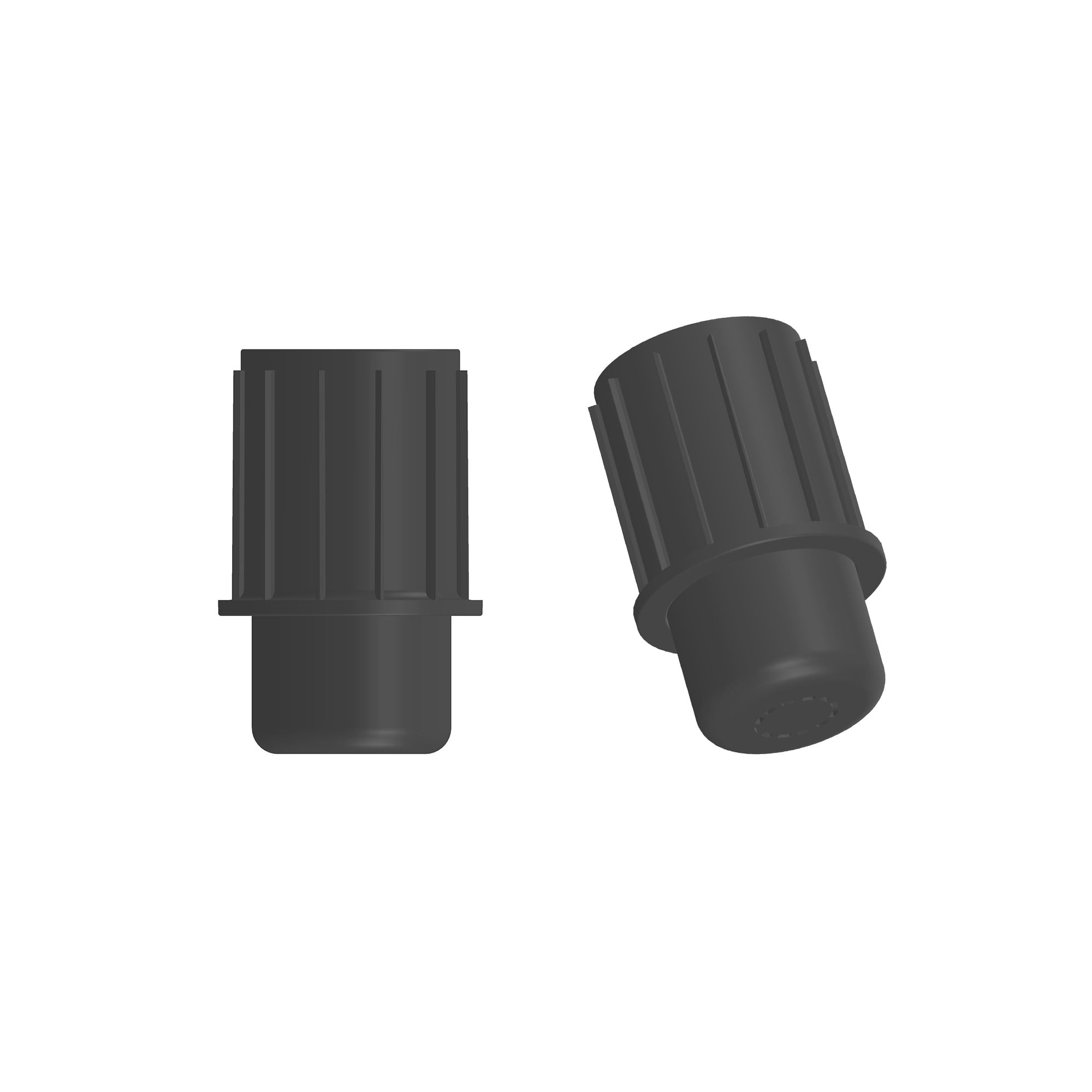

110202 →	Ø 50 x (2)	A
110203 →	Ø 50 x (1,5)	A
110204 →	Ø 50 x (1)	A

Square

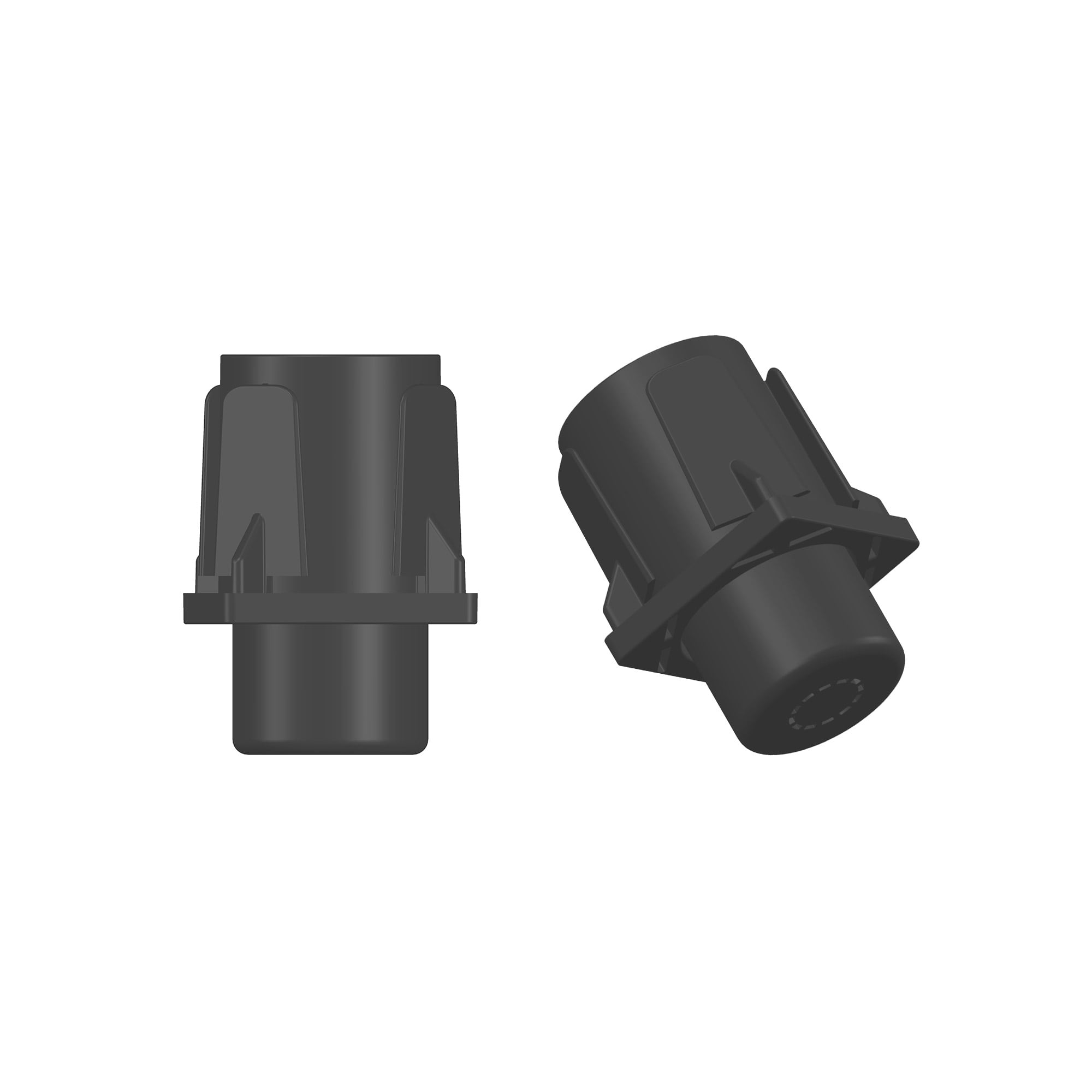

110210 →	50 x 50 x (1,0 – 2,5)	A / B

Specific
110220 →	Special contour	A / B

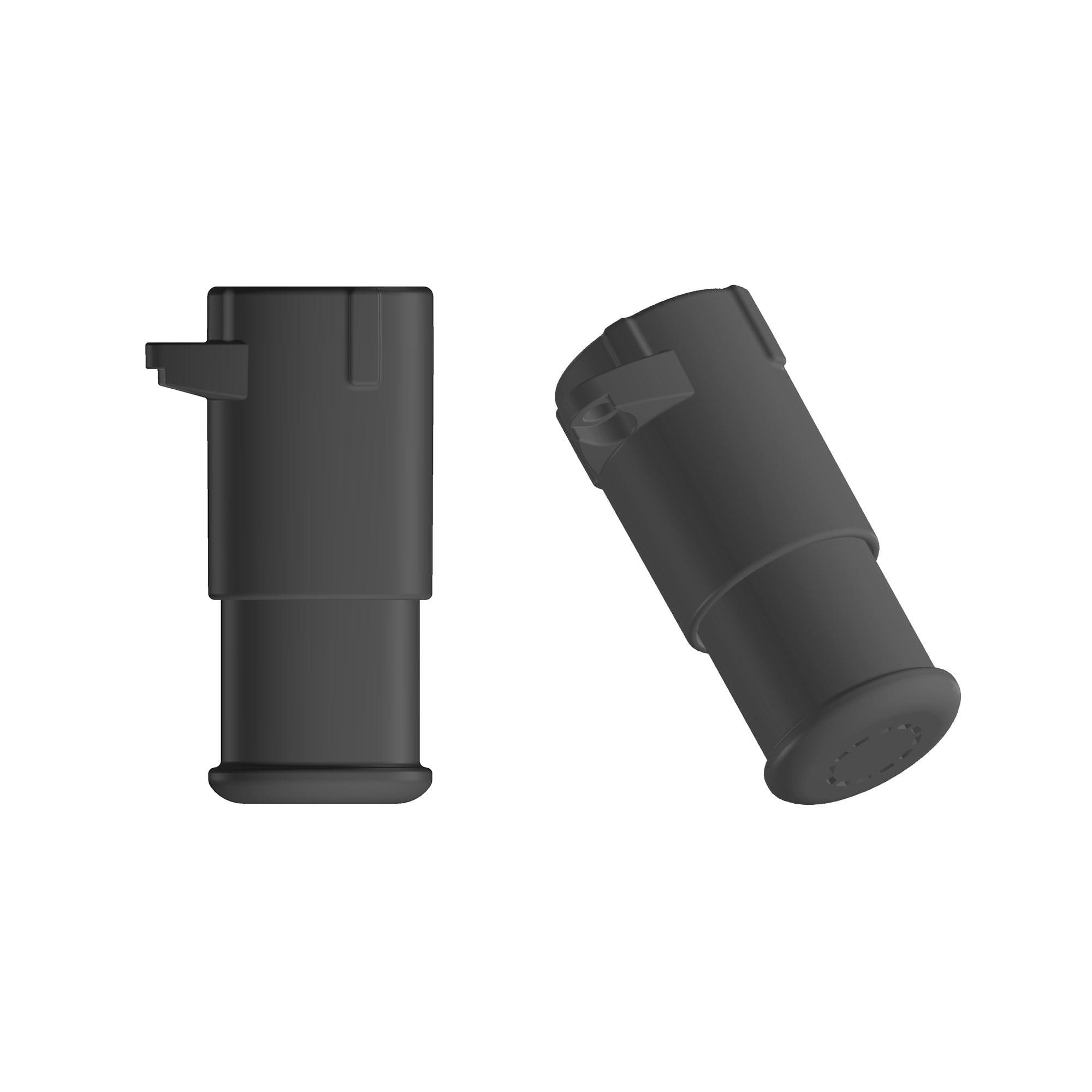

110620 →	System compatible	C

110100 (Basis) →	Ø 26 x (1,5)	A / D
110101 →	Ø 26 x (1,5)	A / D
110140 →	Ø 26 x (1,5)	A / D
110150 →	Ø 26 x (1,5)	A / D
110160 →	Ø 26 x (1,5)	A / D
110180 →	Ø 26 x (1,5)	A / D
110185 →	Ø 26 x (1,5)	A / D

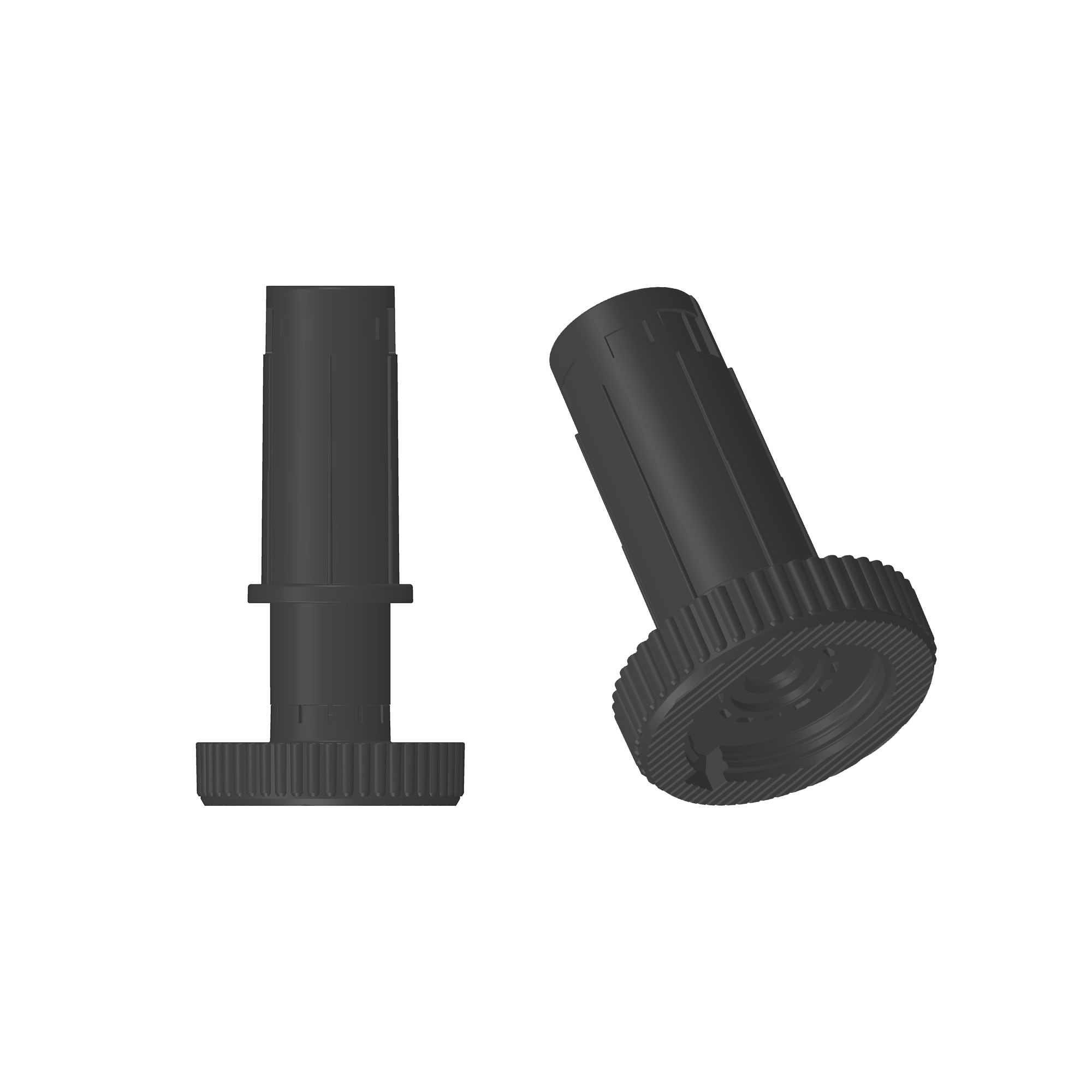

110501 →	Ø 26 x (1,5)	A / D

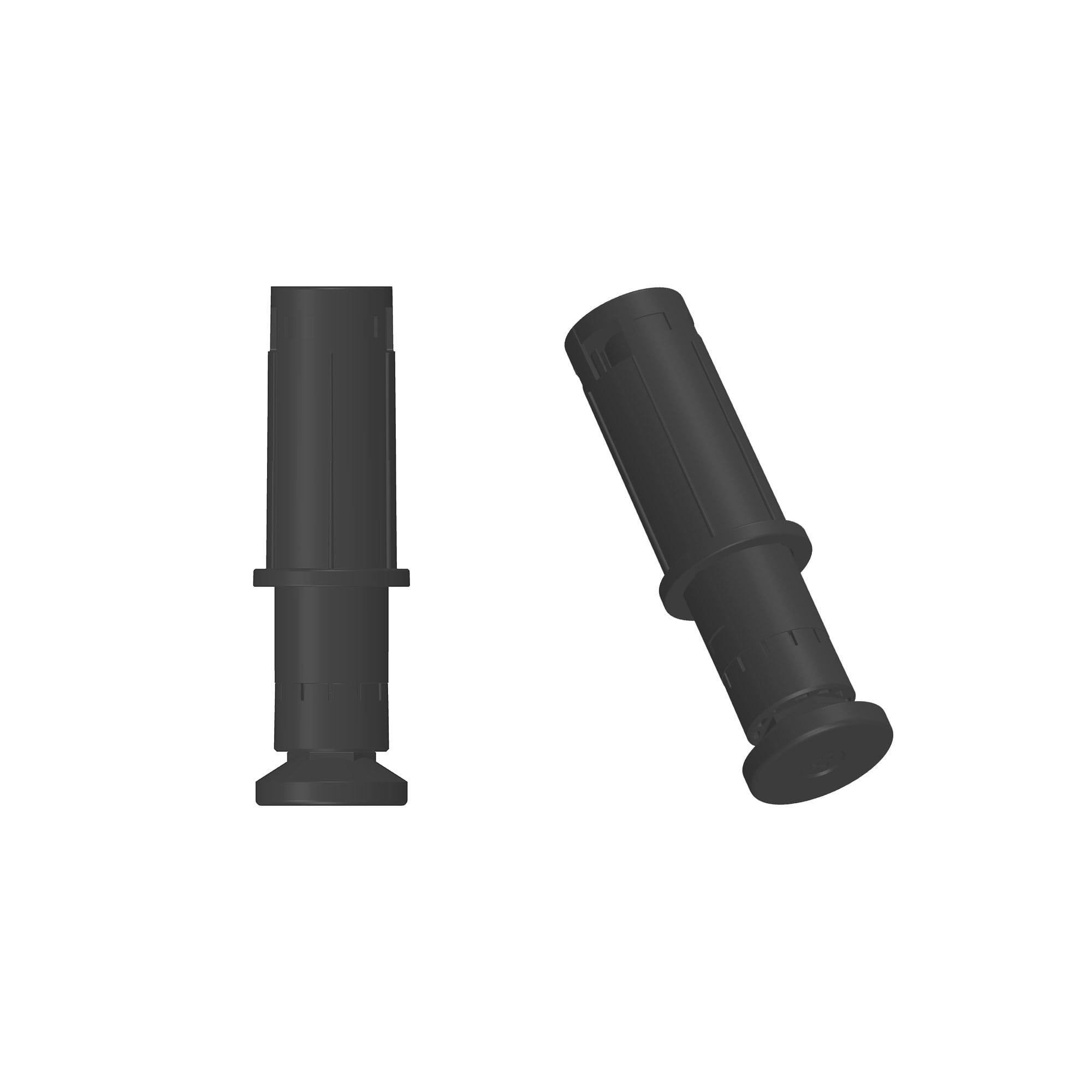

110610 →	Ø 26 x (1,5)	A / D

Request Custom Solution

Instructions & Downloads

Flyer (english) Operating Instructions Leveling System (German) Operating Instructions Leveling System (English)

Request

Assembly video

Matching adapter plug D

Find the right adapter for your assembly D

Round	Square	Rectangle
30 X 1.5
30 X 2	30 X 30 X 1.5	40 X 30 X 2
32 X 1.2	30 X 30 X 2	50 X 30 X 2
32 X 1.5	32 X 32 X 2	60 X 30 X 2
32 X 2	35 X 35 X 2
35 X 1.5	38 X 38 X 1.5
35 X 2.5	40 X 40 X 1.5
35 X 2	40 X 40 X 2
37.5 X 1.5	40 X 40 X 3
38 X 1.5	50 X 50 X 1.5
40 X 1.5	50 X 50 X 2
40 X 2	50 X 50 X 2.5-3
42 X 2	60 X 60 X 2
45 X 2	70 X 70 X 2
48.3 X 2.3-2.9
50 X 1.5
50 X 2
60 X 2.3-2.9
